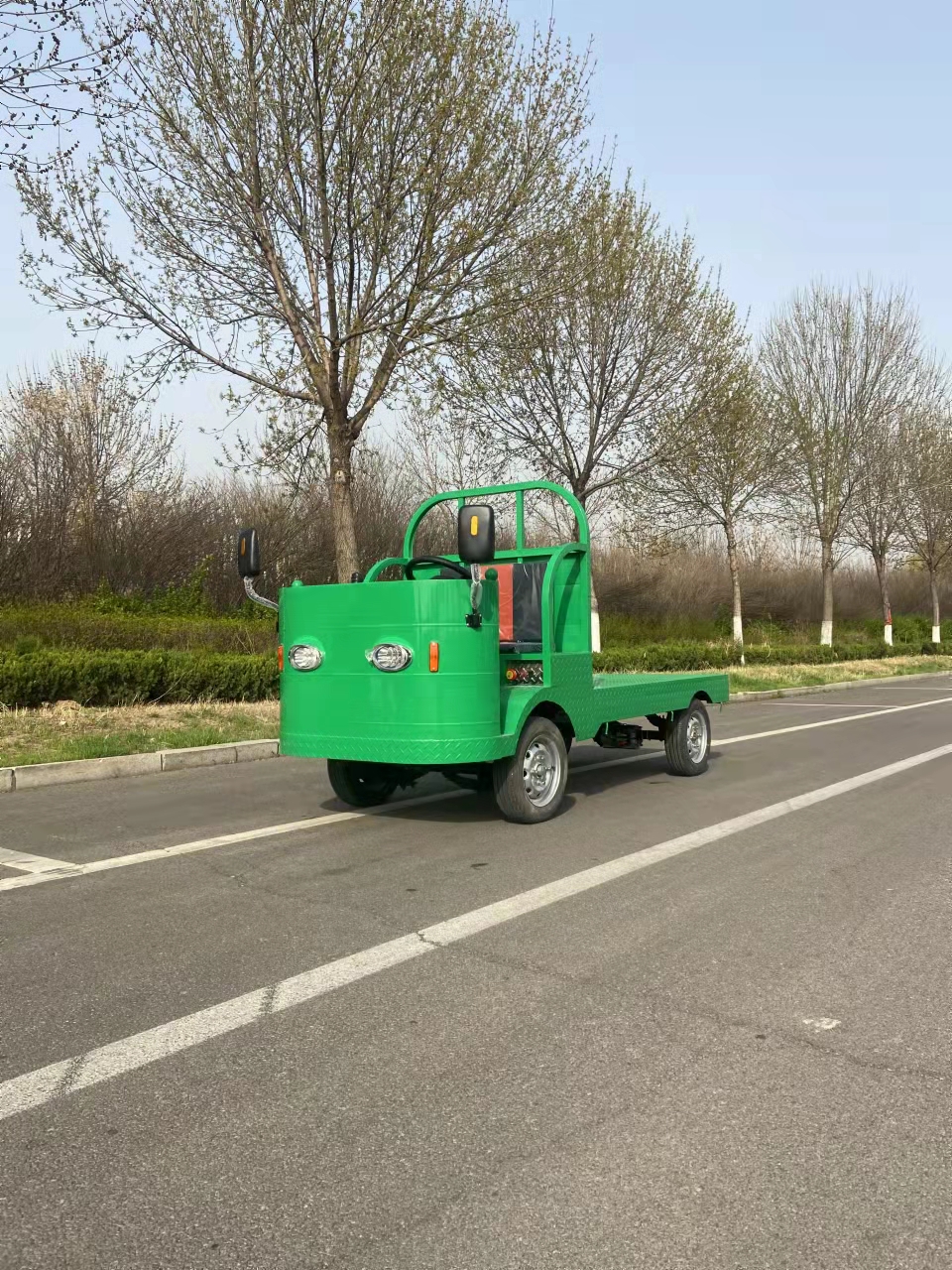

2ton Electric Platform Truck

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • WELIFTRICH

  • 12months

  • Jiangsu, China

  • 4.2*1.6m

  • 600mm

  • 2ton Electric Platform Truck

  • 2000KG

Availability:
Quantity:

Product Description

Advantages

Load capacity: 2000kg

Wheels: Pneumatic

Seat height/stand height: 800mm

Loading height: 600mm

Length of loading surface: 3000mm

Turning radius: 3250mm

Battery: 72V/85AH

Suitable for long distance cargo transportation in the factory, railway station, airport etc area.

Driving is the same as car, easy to use.

Double seats can be used to carry two persons, which is convenient for handling and loading of goods.

Excellent climbing grade, 10%-20%.

Optional wheels can choose Solid tire or Environment friendly solid tire.


Features:

WELIFTRICH electric platform truck manufactured by Welift mechanical. The unit is primarily used for carrying cargoes in industries such as warehouse, logistics, port and factory workshop. The device is electrically powered, integrated with a built-in charger, making the operator free from the need of carrying heavy charger. The unit also has an emergency stop device, and a rubber pneumatic drive wheel of electric platform truck with alternative tread patterns and material specifications. This electric platform truck has a fingertip control feature and a compact size, which makes the unit easy to operate.


Specification


Electrical System

Controller

Imball controller


Battery

72V/85Ah



Motor

4KW AC motor



Charging time

6-8 hours(discharge rate 80%)



Charging voltage

220V


Specification

Overall length*width(m)

4.2*1.6



Platform size(m)

3*1.6

Braking distance

≤4m


Capacity

2000kg

Passenger

2


Front/rear wheelbase

1500/1500mm

Max.speed

≤30km/h


Wheelbase

2400mm

Grade Ability

20%


Height of platform

600mm

Min. Turning radius

4.5m


Seat

Leather washable craft seats

Driving mileage

≤50km

Body System

Body

Steel frame + Full Metal Jacket


Meter

Digital display liquid crystal instrument display (including voltage, current, speed, mileage, lighting, reversing and other signals)


Rearview mirror

Manual external rearview mirror


Lights and signals

Combined headlight, turn signal, combined rear taillight, brake light, electric horn and reversing buzzer


Switch

Start switch, light and wiper combined switch, advance and retreat gear switch


Door

Detachable metal door + injection tempered sliding window (2 doors)


Frame

Steel frame


Steering wheel

Polyurethane foam steering wheel


Power transmission system

Electronic infinitely variable speed system

Chassis System

Steering system

Rack and pinion directional machine


Front axle and suspension

Non - independent suspension integral front axle


Rear axle and suspension

Integral weighted rear axle + high strength plate spring


Braking system

Drum brake


Wheels

155-70 pneumatic tyre*6(double tyres in rear axle)
