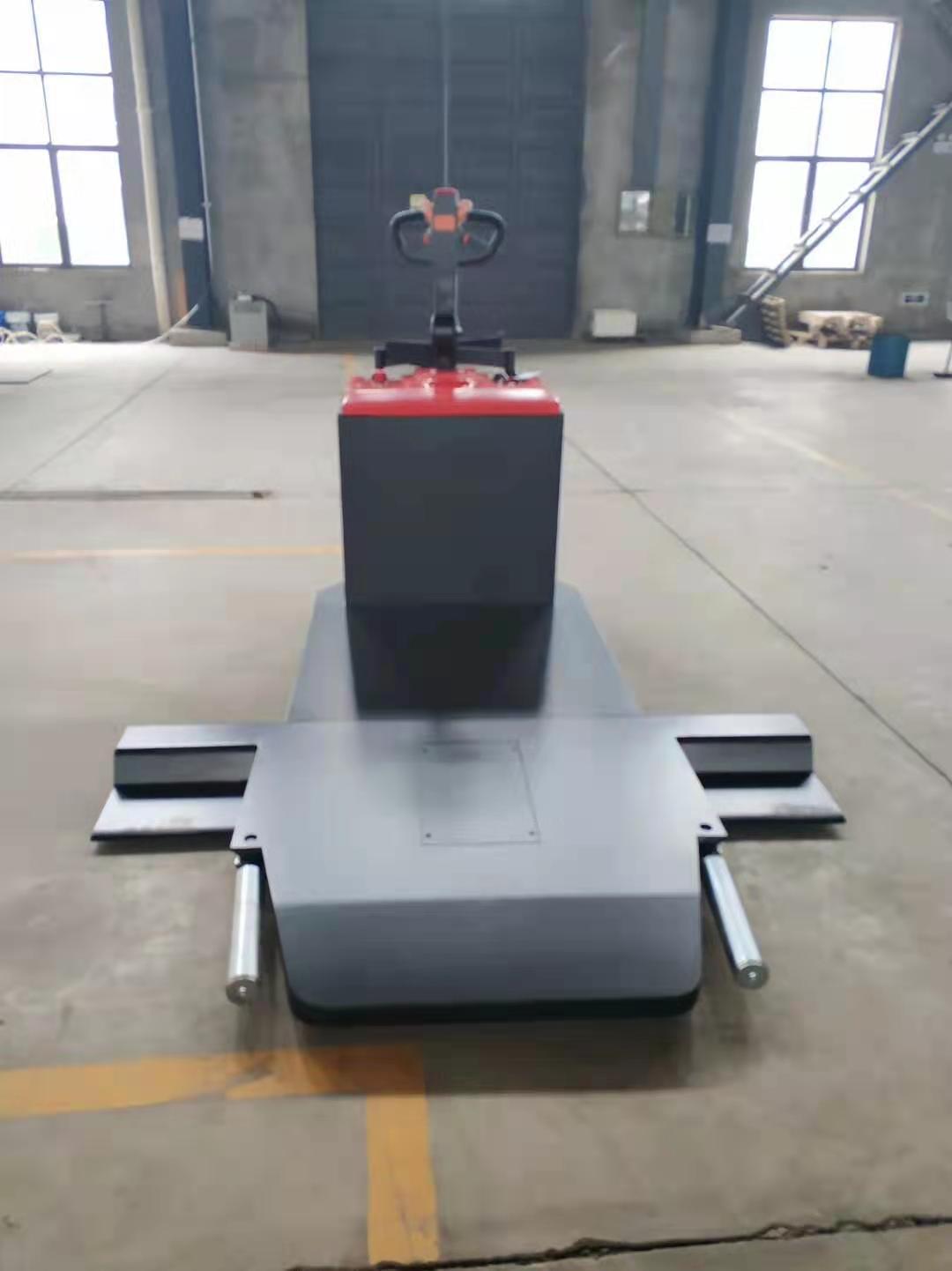

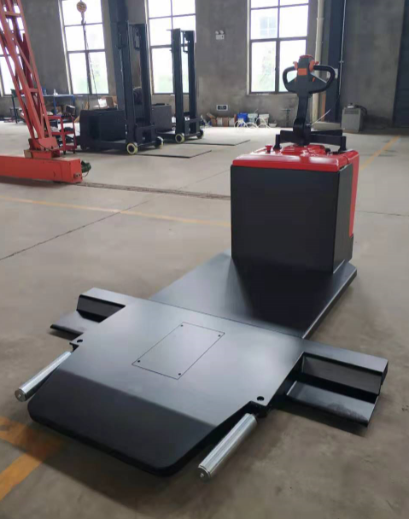

Electric Car Mover EPT-30C
Electric Car Mover EPT-30C Electric Car Mover EPT-30C
Electric Car Mover EPT-30C Electric Car Mover EPT-30C
Electric Car Mover EPT-30C Electric Car Mover EPT-30C
Electric Car Mover EPT-30C Electric Car Mover EPT-30C
Electric Car Mover EPT-30C Electric Car Mover EPT-30C

loading

Electric Car Mover EPT-30C

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • EPT-30C

  • WELIFTRICH

  • 12months

  • Jiangsu, China

  • 2660*1850MM

  • 950KG

  • 3000KG

Availability:
Quantity:

Product Description

Configuration:


1. USA CURTIS Controller;

2. Stepless speed regulation;

3. German Bucher brand hydraulic lifting pump;

4. 24V/210AH brand lead-acid battery;

5. 24V/30A external automatic charger.

6. Japan NOK brand seals;

7. Ac driving motor;

8. Vertical driving gearbox;

9. Electron steering

10. Amp brand waterproof plug-in

11. Multifunction brand display;

12. Electromagnetic brake

13. Hydraulic lever


Product Description


The car mover is specially designed for automobile manufacturers and automobile exhibition halls. It is especially suitable for small motor vehicles in residential parking lots and underground parking lots, including non powered movements in the maintenance industry, U-turn and transfer of troubled car; Car sales industry's precise handling, movement and display; Removal and placement in the manufacturing industry.

The car can achieve non-ignition shift steering. Adopting advanced electronic step-less speed regulation system, with electron-hydraulic lifting and electric step-less speed regulation walking functions, stable performance and simple operation.

On the basis of transportation, corresponding improvements have been made to the transportation of motor vehicles to achieve the functions of transportation and displacement of motor vehicles. Folding rear standing pedal is optional, which is convenient for the operator to drive on the vehicle and reduce the labor intensity of workers.

This model is equipped with a high-performance power battery, which lasts longer and is equipped with an intelligent charger. The entire charging process does not require special supervision.


Features:


1. To achieve the functions of motor vehicle handling and displacement, on the basis of transportation, corresponding improvements have been made to the transportation of motor vehicles.

2. Equipped with step-less speed-adjustable electric walking mode, high-power DC motor hydraulic station, and ergonomic handle, this model can meet the requirements of small motor vehicle loading and unloading, handling, shifting, etc. Convenient handling and comfortable modern logistics requirements.


Specification


Product Name

Electric Pallet Truck for Car Mover(24V)

Type

Walkie/Rider

Model


EPT-30C

Load capacity

Kg

3000

Tyre type


Polyurethane solid tire

Fork Min.ground clearance

mm

20

Lever rotation angle

°

90

Overall length

mm

2660

Overall width

mm

1850

Turning radius

mm

2450

Max.driving speed

Km/h

4~5

Climbing ability

%

0

Service weight

Kg

~950

Drive wheel size

mm

Ø230*75

Front wheel size

mm

Ø85*70

Balance wheel size

mm

Ø130*55

Battery

V/Ah

24/210

Charger

V/A

24/30

Driving motor

Kw

1.6

Lifting motor

Kw

2.0

Brake


Electromagnetic

Drive control type


AC

Traveling speed regulation mode


Hall accelerator
