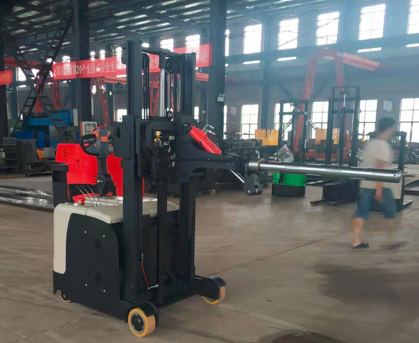

Counterbalance Electric Stacker with Spindle

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • EPT-08C


  • 12months

  • Jiangsu, China

  • 1780*1085*1600MM

  • 600KG


Product Description

WELIFTRICH Configuration:

1. US CURTIS brand Controller system

2. Stepless speed regulation
3. Integral hydraulic pump
4. 24V/200AH lithium battery
5. The whole vehicle seal adopts Japanese NOK
6. Vertical AC drive motor
7. Vertical transmission gearbox
8. High wear-resistant polyurethane wheel (load-bearing wheel, driving wheel, balance wheel)
9. Walkie type
10. Handle with shock absorption
11. Multifunctional electricity meter
12. Electromagnetic brake
13. Electronic steering
14. Double lift cylinder
15. Automatic deceleration in curves
16. Omron induction micro switch
17. Install the attachment(Spindle)

Product Description

ES-08C is an electric counterbalanced Stacker that is suitable for versatile applications. It optional to hâve the rider platform or not, with rated capacity up to 800kg. Low energy consumption with long working hours, suitable for loading and unloading goods from factories arehouses, lorries etc. Quality industrial lead acid battery long operating time.suitable for factories,warehouses,trucks and other places,especially for the loading and unloading of cargo in narrow space. ES-08C equipped with 24V/200Ah lithium battery. Emergency switch Emergency switch ensures the safety of driving. Storage tray The robust battery cover cornes with a storage area for tools and stretch film used for packaging. Foldable platform Optional suspension foldable platform with sideways protectives arms. The ergonomically designed foldable platform in combination with its sideways protective arms makes operations faster and safer. Powerful AC vertical drive System AC vertical drive System increases performance, reduces maintenance cost and improves working efficiency. Electric power steering Electric power steering makes the operating effortless. Manuvering in narrow spaces becomes a lot easier with electric power steering.



Drive type
Load (KG) 600
Maximum lifting height (mm) 2000
Load Center (mm) 600
Polyurethane Wheel
The maximum working diameter of the attachment(Spindle) (mm) 76
Side shift range of the attachment(Spindle) (mm) ±60
Effective length of the attachment(Spindle) (mm) 650
Cargo size (mm) ¢1000*700
the attachment(Spindle) rotation angle (°) 90
Overall length (no reach) (mm) 1780
Full width (mm) 1085
Reach distance (mm) ~400
Lowered mast height (mm) 1600
Turning radius (pedal retracted) (mm) 1740
Minimum stacking channel (mm) 2750
Minimum ground clearance (mm) 70
Maximum travel speed Km/h 4.0/5.0
Gradeability % 5/6
Drive wheel (mm) 230*75
Front wheel (mm) 210*85
Balance wheel (mm) 130*55
Battery Type
Battery voltage/capacity (V/Ah) 24/200
Lifting motor (KW) 2.2
steering type
Electric steering
Driving motor (KW) 1.6
Sound pressure lever at the driver's ear dB(A) 74
