ES-12P
WELIFTRICH
1150*160mm
12months
Jiangsu, China
1950*800*1840mm
700KG
CE
1500mm
Electric Stacker
1200KG
Availability: | |
---|---|
Quantity: | |
Product Description
Capacity 1.2t, lift height 1.5m, single mast |
Simple structure,easy to maintain and repair. |

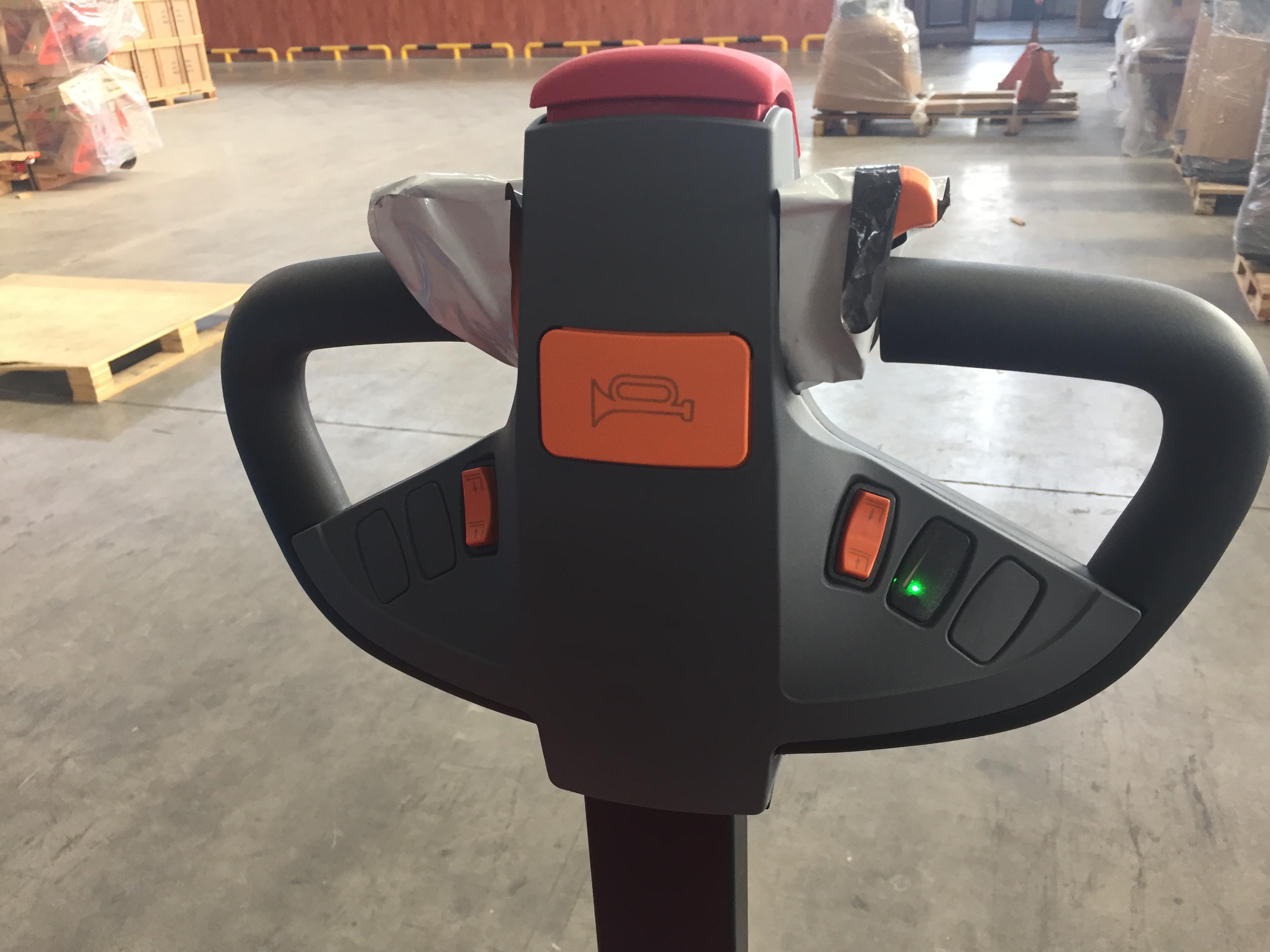

Long operation handle allows more light steering. |
Horizontal driving wheel,electromagnetic brake. |
CURTIS controller,MAHLE hydraulic motor. |
Safety features include a horn and belly reverse button. |
Bias handle type, middle driving type, straddle leg can be optional per your request |
Automatic battery charger,battery voltage indicator. |
Work in cold room, 2-8℃ |
Integral strong chassis with alloy steel insert legs. |
Walkie Electric Stacaker 24V | |||
Performance | Model | ES-12P | |
Load capacity | kg | 1200 | |
Mast | Single mast | ||
Lifting height | mm | 1500 | |
Load center | mm | 600 | |
Wheel | Wheel material | PU | |
Driving wheel size | mm | φ210*70 | |
Loading wheel size | mm | φ85*70 | |
Balance wheel size | mm | φ130*55 | |
Dimension | Fork size (lxw) | mm | 1150*160 |
Outside width of forks | mm | 550/685 | |
Overall length | mm | 1950 | |
Overall width | mm | 800 | |
Mast lowered height | mm | 1840 | |
Mast extend height | mm | 1950 | |
Free lift | mm | 1340 | |
Min.fork hright | mm | 90 | |
Turning radius | mm | 1590 | |
Min.aisle width | mm | ≥2355 | |
Motor | Driving speed, laden/unladen | km/h | 3.5/4.0 |
Gradeability | % | 3 | |
Driving motor | kw | 0.75 | |
Lifting motor | kw | 2.2 | |
Brake | Brake | Electromagnetic | |
Battery | Battery voltage | V | 24 |
Battery capacity | Ah | 100 | |
Charger | V/A | 24/30 | |
Noise level | Sound pressure level at driver's ear | dB(A) | ≤70 |
