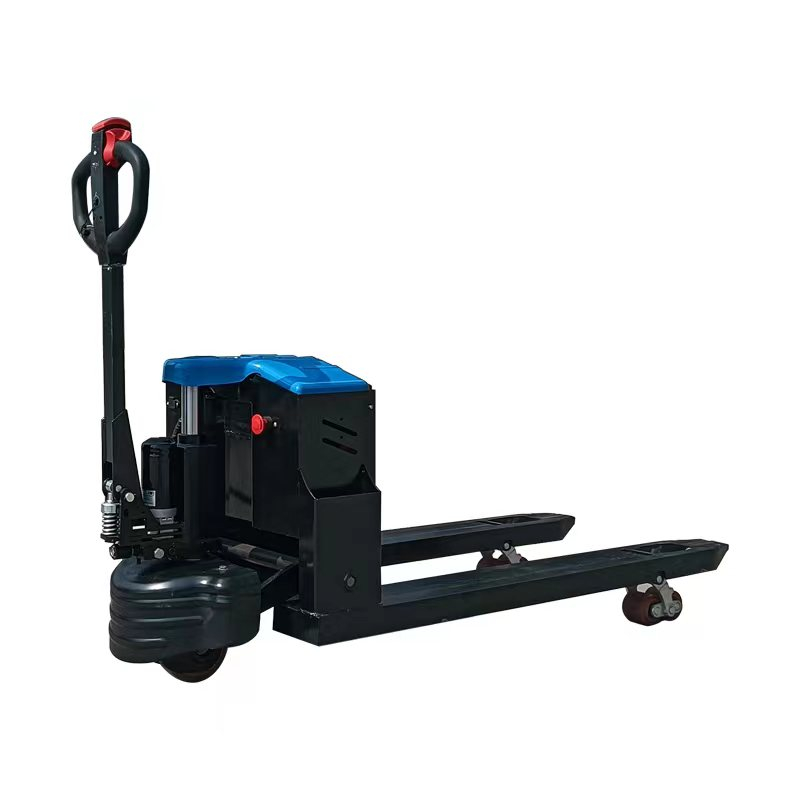

Product Description
| Model | unit | EPT-20K | EPT-25F | EPT-30F | ||
| Characteristic | 1 | Power | Electric | Electric | Electric | |
| 2 | Operation type | Walkie | Walkie | Walkie | ||
| 3 | Load capacity | Kg | 2000 | 2500 | 3000 | |
| 4 | Wheel type | PU/PU | PU/PU | PU/PU | ||
| 5 | Wheel size-driving wheel | mm | 160*55 | 160*55 | 160*55 | |
| 6 | Wheel size-load wheel | mm | 80*70 | 80*70 | 80*70 | |
| Weight | 7 | Maxium lifting height | mm | 115 | 115 | 115 |
| Wheel | 8 | Min fork height | mm | 200 | 200 | 200 |
| 9 | Oveall width | mm | 685 | 685 | 685 | |
| 10 | Fork Size | mm | 60*160*1150 | 60*160*1150 | 60*160*1150 | |
| 11 | Fork width | mm | 550/685 | 550/685 | 550/685 | |
| 12 | Walking speed( load/unload) | km/h | 5/6 | 5/6 | 5/6 | |
| 13 | Grade ability( load/unload) | % | 6/10 | 6/10 | 6/10 | |
| Parameter | 14 | Driving motor | kw | 1 | 1 | 1 |
| 15 | lifting motor | kw | 1 | 1 | 1 | |
| 16 | Driving brake | Electromagnetic | Electromagnetic | Electromagnetic | ||
| 17 | Steering type | Manual | Manual | Manual | ||
| 18 | Battery(voltage/capacity) | V/Ah | 48V20Ah, 48V32Ah | 48V20Ah, 48V32Ah | 48V20Ah, 48V32Ah | |
| 19 | Service weight(including battery) | Kg | 180/190 | 180/190 | 180/190 | |
