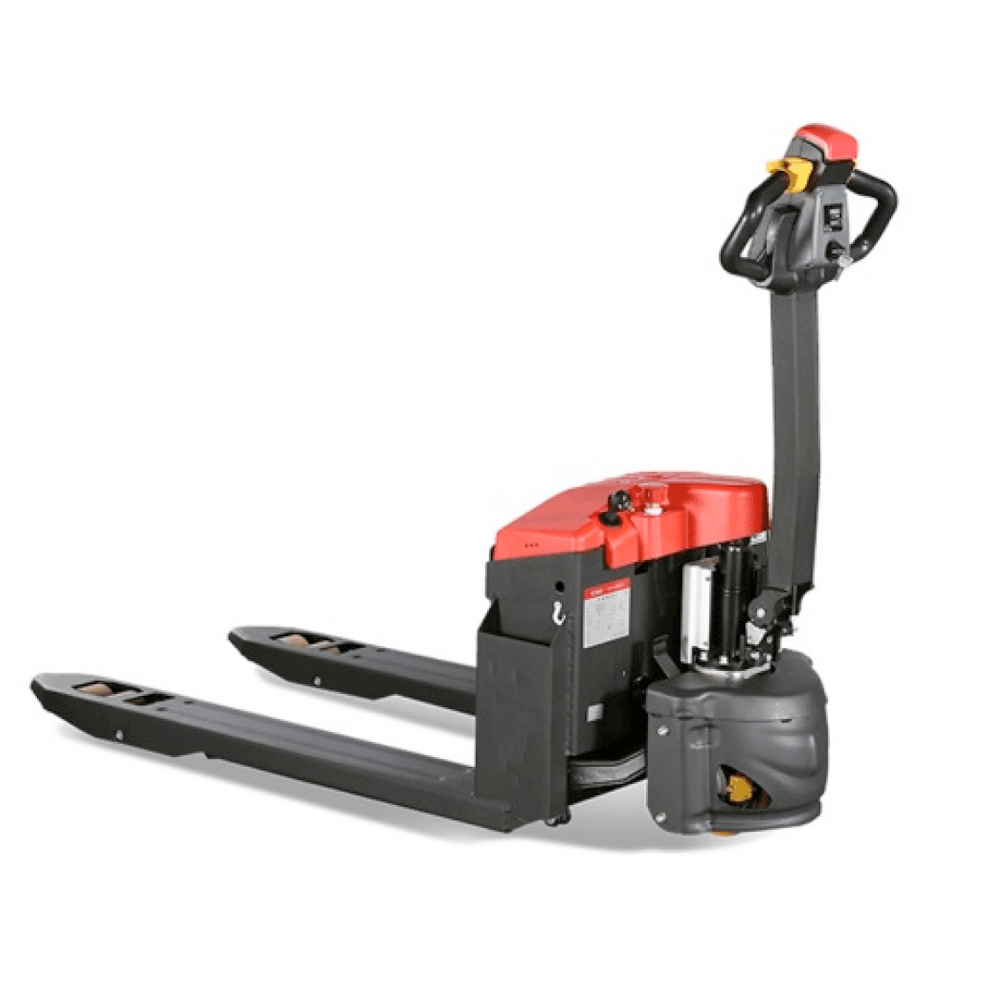

Lead acid battery electric pallet jack EPT-15A - WELIFTRICH

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
WELIFTRICH Small size with lots of power – EPT-15A has totally proven its worth by rapidly increase sales. innovative patents ensure powerful performance, high stability, long service life and easy operation.
  • EPT-15A

  • WELIFTRICH

  • 1150mm*550mm/685mm (45inch*21.6inch/27inch)

  • 1 year

  • Jiangsu, China

  • 1650mm*685mm*1350mm (65inch*27inch*53inch)

  • 118kg (260lbs)

  • CE, UL

  • 205mm (8.1inch)

  • PU wheels

  • Electric pallet truck with lithium battery

  • 4409lbs

Availability:
Quantity:

Product Description

WELIFTRICH Small size with lots of power – EPT-15A has totally proven its worth by rapidly increase sales. innovative patents ensure powerful performance, high stability, long service life and easy operation.

The EPT-15A is a reliable partner to enhance the production efficiency and liberate labour force.

The EPT-15A has many great features that will help you improve your daily operations.

Upgraded emergency switch ensures safety.

The cover can be easily removed for quick maintenance work and service.

Upper-installed charger, better heat-exhausting, higher charging efficiency.

Innovative design, easy for battery replacement.

photobank


Datasheet:

Parameters



1.1 Brand

WELIFTRICH
1.2 Model

EPT-15A
1.3 Power type

Electric
1.4 Operation type

Rider
1.5 Capacity Q kg 1500
1.6 Load center c mm 600
1.8 Bearing length x mm 883/946
1.9 Wheel base y mm 1202/1261
Weight



2.1 Service Weight (Including Battery)
kg 164/190
2.2 Axle load, full load drive wheel end/bearing end
kg 536/1128
2.3 Axle load, no-load drive wheel end/bearing end
kg 124/40
Tires



3.1 Tyre type, drive wheel/load wheel

PU
3.2 Driving wheel size (diameter × width)
mm 210×70
3.3 Size of bearing wheel (diameter × width)
mm 2×78×60
3.4 Balance wheel size (diameter × width)
mm
3.5 Number of driving wheels, balance wheels/bearing wheels (×= driving wheels)
mm 1×/4(1×/2)
3.6 Front wheelbase, driving b10 mm 448
3.7 Rear wheel base, bearing b11 mm 410(535)
Size



4.4 Standard maximum lifting height h3 mm 115
4.9 Operating position Minimum/maximum height of handle lever h14 mm 750/1170
4.15 Lower the rear fork surface height h13 mm 85
4.19 Overall length l1 mm 1638/2138
4.20 The length of the vertical plane of the arrival fork l2 mm 488
4.21 Overall width b1/b2 mm 560(685)
4.22 Fork dimensions s/e/l mm 50/150/1150
4.25 Fork width b5 mm 560(685)
4.32 Ground clearance at wheelbase center m2 mm 30
4.34.4 The width of stacking Aisle 1200mm×1000mm Ast mm 1739/2350
4.34.2 The width of stacking Aisle 800mm×1200mm Ast mm 1939/2450
4.35 Turning radius Wa mm 1485/1750
Parameters



5.1 Travel speed, full load/no load km/h km/h 4/4.5
5.2 Lifting speed, full load/no load
m/s 0.027/0.038
5.3 Down speed, full load/no load
m/s 0.059/0.039
5.8 Maximum climb, full load/no load

5/16
5.10 Brake type

Electromagnetic brake
Motor. Power source



6.1 Drive motor rated power S2 60 minutes
kw 0.65
6.2 Rated power of lifting motor S3 15%
kw 0.84
6.3 Maximum permissible size of battery
mm
6.4 Battery voltage/nominal capacity K20

2×12/65
6.5 The battery weight
kg 45
6.6 Optional lithium battery

24/100
6.7 The battery weight
kg 8
6.8 Optional scale accuracy
1‰
Other parameters



8.1 Type of drive control

DC
10.5 Steering type

Mechanical
10.7 Noise level

70
