3307lbs Li-ion battery electric pallet jack EPT-15D - WELIFTRICH

WELIFTRICH supply professional li-ion battery electric pallet truck, capacity is 3307lbs and 4409lbs, Min. fork height 2.95inch perfectly goes under pallets.

Model:
EPT-15D
Brand:
WELIFTRICH
Fork size:
1150mm*550mm/685mm (45inch*21.6inch/27inch)
Warranty:
1 year
Place of Origin:
Jiangsu, China
Dimension(L*W*H):
1650mm*685mm*1350mm (65inch*27inch*53inch)
Weight :
118kg (260lbs)
Certification:
CE, UL
Lifting Height:
205mm (8.1inch)
Wheel Type:
PU wheels
Product Name:
Electric pallet truck with lithium battery
Load Capacity:
3307lbs

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Product:

EPT-15D 1

Datasheet:

Mode		EPT-15D				EPT-18B				EPT-20P
Drive type		ELECTRIC				ELECTRIC				ELECTRIC
Manner of operation		Walkie				Walkie				Walkie
Load Capacity	Qt	1.5				1.8				2
Load Centre	c(mm)	600				600				600
Distance between fork backrest and front wheel	x(mm)	944				944				944
Wheel Base	y(mm)	1243				1243				1243
Service Weight (with battery)	kg	142	144	146	149	142	144	146	149	146	149
Tire material		PU				pu				pu
Driving wheel size	Φ*w(mm)	Φ210×70				Φ210×70				Φ210×70

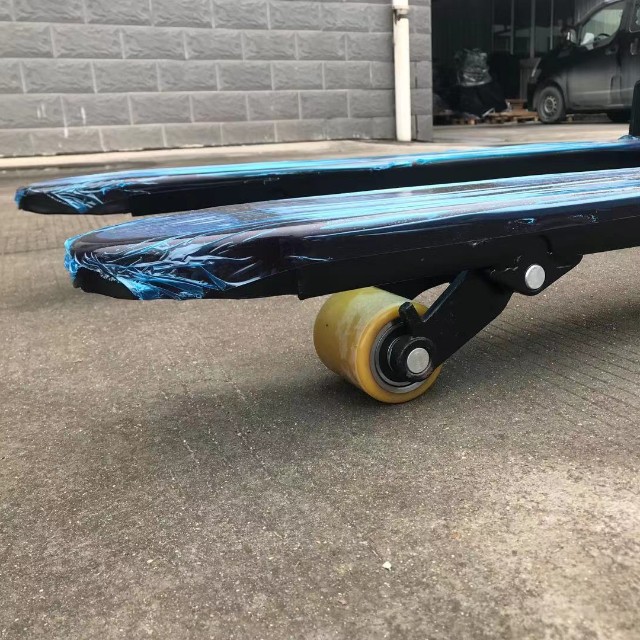

Balance wheel size	Φ*w(mm)	Φ80×60				Φ80×60				Φ80×60
Qty of wheel, Front/Rear (x=driving wheel)		1x/4				1x/4				1x/4
Tread	b11(mm)	400/535				400/535				400/535
Lifting Height	h3(mm)	200				200				200
The height of handle in the operation position	h14 (mm)	740/1160				740/1160				740/1160
Lowered fork height	h13 (mm)	85				35				35
Overall Length	l1(mm)	1603				1603				1603
Body Length	12(mm)	453				453				453
Overall Width	b1/ b2 (mm)	550/685				550/685				550/685
Fork Size	s/e/l(mm)	50/150/1150				50/150/1150				50/150/1150
Fork Width	b5(mm)	550/685				550/685				550/685
Ground clearance under mast	m2 (mm)	35				35				35
Aisle width for pallets 1000*1200 crossways	Ast(mm)	1804				1804				1804
Aisle width for pallets 1000*1200 lengthways	Ast(mm)	1854				1854				1854
Turing Radius	Wa (mm)	1398				1398				1398
Driving Speed,load/unload	(km/h)	4.2/4.5				4.2/4.5				4.2/4.5
Maximum gradeability load/unload	(%〕	5/10				5/10				5/10
Brake Type		Electromagnetic brake
Drive Motor	(kw)	0.75				0.75				o.75
Lift Motor	(kw)	0.8				o.8				0.8
Battery voltage/rate capacity	(V/Ah)	24/20	24/30	24/40	24/60	24/20	24/30	24/40	24/60	48/20	48/30
Battery Weight(±5%）	(kg)	6	7.8	10.2	13.2	6	7.8	10.2	13.2	10.2	13.2
Type of drive control		DC				DC				DC
Noise level	(dB(A))	≤70				≤70				≤70
Steering type		Manual steering system
