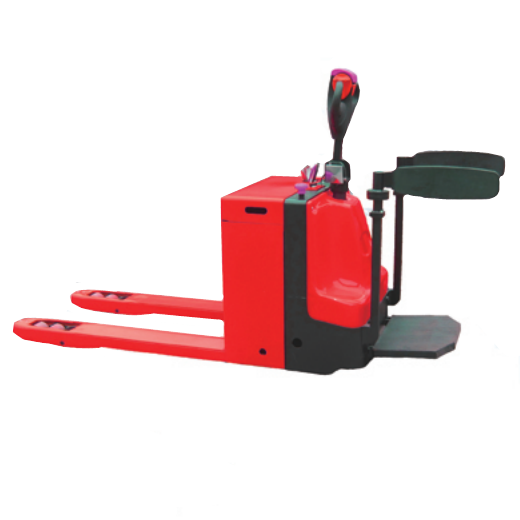

Weliftrich® products have improved worker productivity and efficiency. Power propelled, power lift truck is the logical step-up from a manual truck, as it outperforms two to three operators with manual jacks. 24V DC high-torque drive and lift motors. Multi-function handle allows operation with either hand and features thumb throttle, lift/lower controls, safety reversing switch and horn. Automatic dead-man emergency brake cuts power when handle released.
  • EPT-20C

  • WELIFTRICH

  • 550MM*1150MM, 680MM*1200MM

  • 1 Year

  • Jiangsu, China

  • 1780*690*1305

  • 329kg

  • CE certification, UL certification

  • 205MM

  • PU wheels

  • Electric pallet truck with lithium battery

  • 2000kg, 4409Lbs

Availability:
Quantity:

Product Description

Application

Weliftrich® products have improved worker productivity and efficiency. Power propelled, power lift truck is the logical step-up from a manual truck, as it outperforms two to three operators with manual jacks. 24V DC high-torque drive and lift motors. Multi-function handle allows operation with either hand and features thumb throttle, lift/lower controls, safety reversing switch and horn. Automatic dead-man emergency brake cuts power when handle released.



20C 7

微信图片_20220517152611


Datasheet


Without Platform

With Platform

Capacity                       (kg)

2000

2000

Lowered fork height h1           (mm)

85

85

Max. fork height   h2            (mm)

205

205

Fork Lenth       L1            (mm)

1150

1150

Fork Width       b2            (mm)

160

160

Overall fork width  b1           (mm)

530

680

530

680

Wheelbase        Y            (mm)

1406

1406

Min. Turning radius Wa          (mm)

1608

1946

Driving wheel

1.2kw,250mm

1.2kw,250mm

Pump station

0.8kw/24V

0.8kw/24V

Battery

210Ah/24V,185kg

210Ah/24V,185kg

Battery Charger

30A/24V

30A/24V

Overall Dimensions  L*b*H2     (mm)

1780*690*1305

2290*690*1305

Traveling Speed with/without Load (km/h)

3.6/5.4

3.6/5.4

Lifting Speed with/without Load  (mm/s)

22/32

22/32

Climbing slope

8%

8%

Net weight(without battery)         (kg)

324

329

324

329
