Product Description

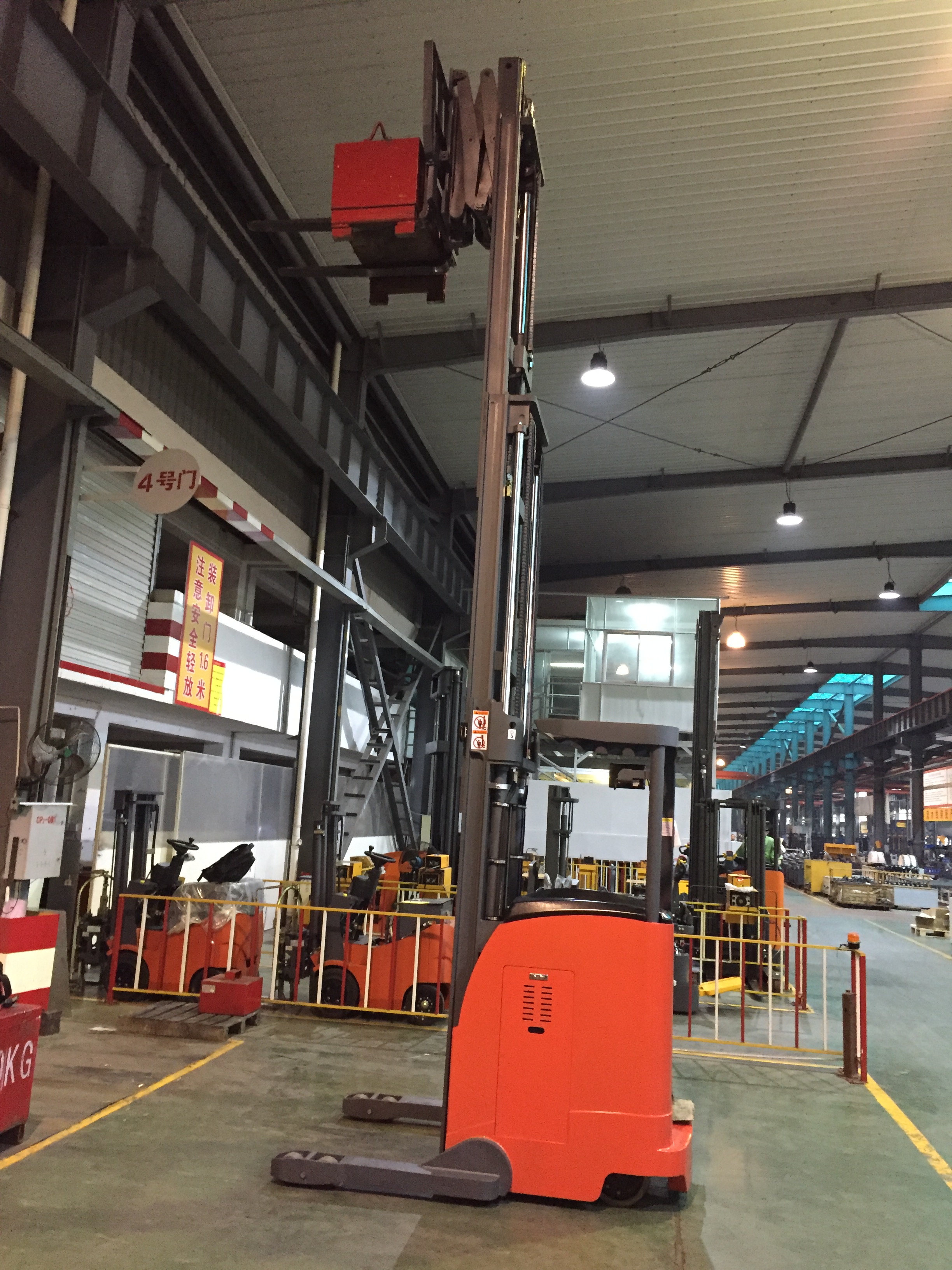

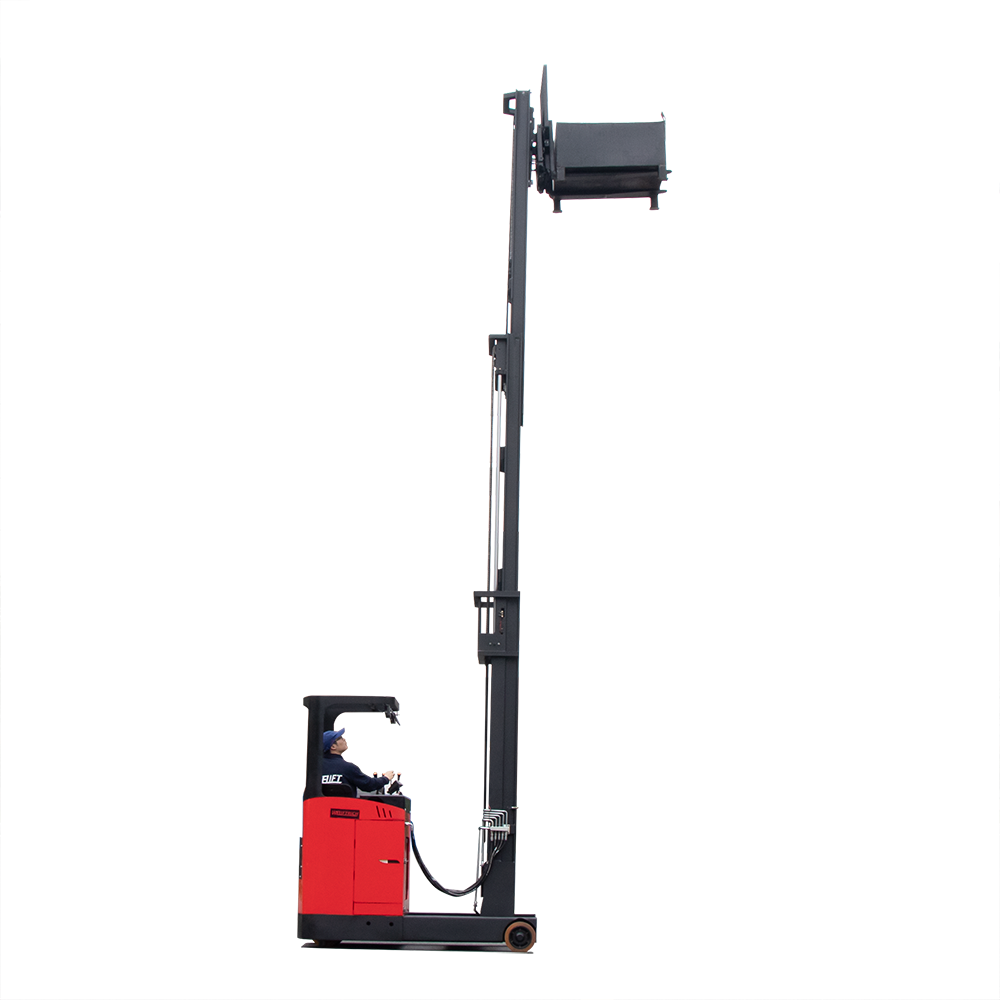

Deep Reach Truck

Extended Reach Forklift

Increase Storage Density

Deep Reach truck forklift save two out of five aisles versus single deep storage, allowing double-deep pallet storage in the racks for increased storage density. WELIFTRICH double deep reach truck forklifts are available with your choice of compartment configuration — Universal Stance, sidestance reach truck or sit-down reach truck.

CQD15RS Deep Reach Truck Specs

Electric Stand-up Deep Reach Truck CQD15RS (Double deep forklift 1.5T)

1) Capacity: 1500kg, Original CURTIS Controller.

2) Lifting height is 6.0m with 3 stage mast. Mast lowered height is 2675mm. Free lift height is 2000mm.

3) Reach distance: 1200mm.

4) Import German ZF gear box, make sure excellent performance and stable quality.

5) Lead- acid battery 24V/560Ah.

6) Min.Turning radius: 1750mm.

7) Recommended channel width: ≥3.0m (the distance of racks).

8) Emergecy stop/hour meter/Battery level indicator.


Keywords

electric reach truck /seated type electric reach truck/electric reach truck forklifts/electric reach truck suppliers/electric pallet reach truck/48V reach fork truck/4000 lb Electric Stand Up Reach Truck/Electric Reach Truck Narrow Aisle Fork Truck/Electric Stacker Forklift Reach Truck/6600lbs Counterbalanced Reach Truck CQD-30R/Deep Reach truck



WELIFTRICH Deep Reach Truck Video
