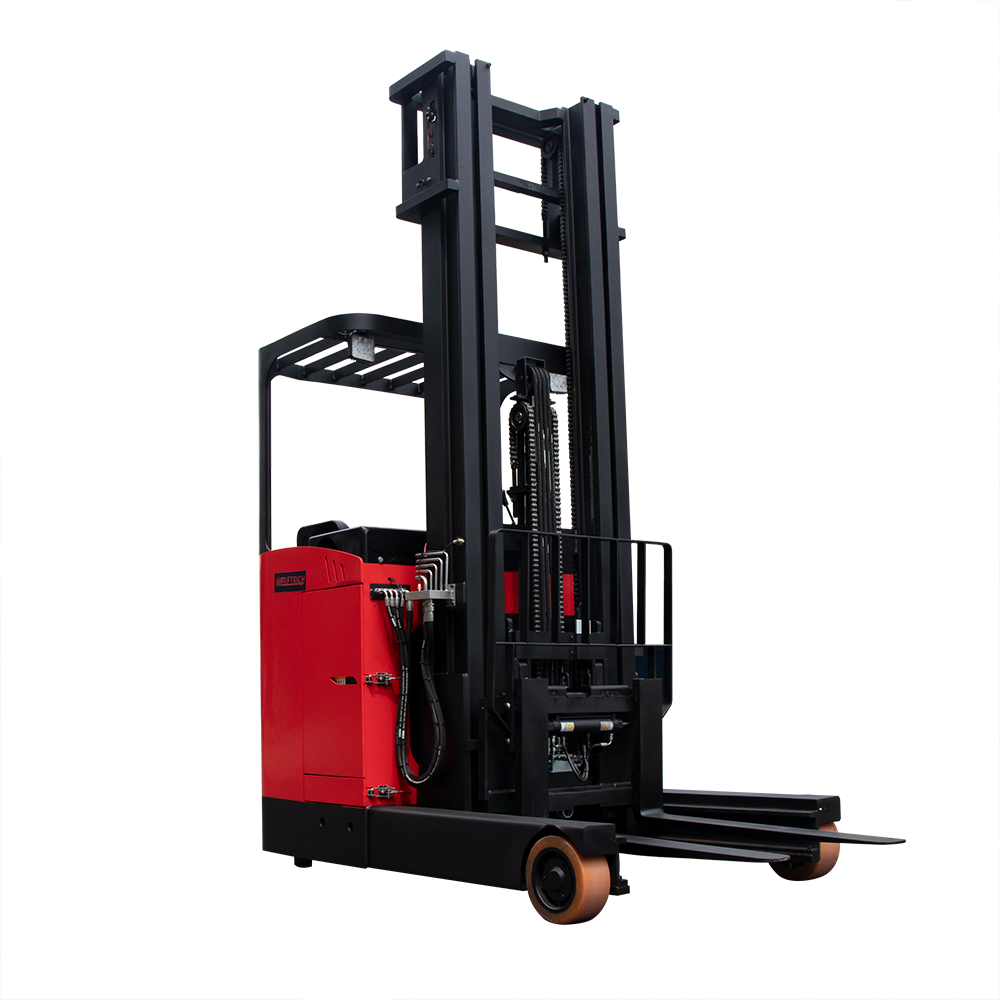

Seated Type 24V Electric Reach Truck CQD-20E

Share to:
  • CQD-20E

  • WELIFTRICH

  • 1070mm fork length

  • 12 months

  • China

  • 3000kg

  • CE

  • 6000mm

  • PU

  • Seated Type 24V Electric Reach Truck CQD-20E - WELIFTRICH

  • 2000kg

Availability:
Quantity:

Product Description

Seated Type 24V Electric Reach Truck CQD-20E - Right-Size Performance


This electric reach truck is equipped with EPS,Curtis controller,ALBRIGHT contactor and AMP waterproof connector. It has the advantages of low noise,energy saving,easy operation,no pollution and so on.


Electric Reach Truck Forklifts Specifications


  • Battery:24 volts forklifts reach truck

  • Battery Capacity:270Ah

  • Capacity:3,300 lbs. to 4,400 lbs loading reach truck.

  • Elevated Height: 236"

  • Maximum load: 4,400 lbs.,

  • Reach distance: 500mm

  • Customized electruc reach truck for Your Application:Hundreds of configurations available to meet your specific needs

  • Electric Reach Truck forklifts 24V

    Model

    CQD10E

    CQD15E

    CQD20E

    Performance

    Maximum load capacity


    kg

    1000

    1500

    2000

    load   center

    Q

    mm

    500

    500

    500

    Maximum   lifting height

    H3

    mm

    2500

    1600

    1600

    Reach length

    E

    mm

    470

    570

    570

    Tiltiing   angle (up/down)

    deg

    °

    3/5

    3/5

    3/5

    Travel speed   (without load)


    km/h

    5.2

    5.2

    5.2

    Travel speed   (with load)


    km/h

    5.2

    5.2

    5.2

    Lifting   speed (without load)


    mm/s

    115

    115

    115

    Lifting   speed (with load)


    mm/s

    92

    92

    92

    Lowering   speed (without load)


    mm/s

    173

    173

    173

    Lowering   speed (with load)


    mm/s

    530

    530

    530

    Gradeability(without load )


    %

    8

    8

    8

    Gradeability(with load )


    %

    5

    5

    5

    Service   weight(with battery)


    kg

    2295

    2325

    2325

    Dimensions

    Overall length   of frame excluding fork length & mast reach length

    L

    mm

    1527

    1880

    1880

    Overall length including fork length excluding mast reach length

    G

    mm

    2134

    2394

    2394

    Overall   length including mast reach length

    G1

    mm

    2649

    2999

    2999

    Overall   width of frame

    B

    mm

    1034

    1034

    1034

    Overall   height when mast lowered to lowest

    H1

    mm

    1725

    2200

    2200

    Overall height when mast lifted to highest

    H4

    mm

    3500

    2636

    2636

    Wheelbase

    Y

    mm

    1212

    1551

    1551

    Fork size


    mm

    1070*35*100

    1070*35*100

    1070*40*100

    Adjustable   range of fork outside width

    R

    mm

    210-700

    210-700

    210-700

    Fork height   when fork lowered to lowest

    S

    mm

    60

    60

    65

    Min ground   clearance


    mm

    55

    55

    55

    Theoretical Width of minimum    aisle for right-angle  stacking (1200x1000)

    Asts

    mm

    2298

    2532

    2532

    Minimum turning radius

    Wa

    mm

    1566

    1902

    1902

    Overhead   guard height


    mm

    2185

    2185

    2185

    Tire

    Front wheel


    mm

    210*85

    210*85

    210*85

    Drive wheel


    mm

    230*75

    230*75

    230*75

    Caster wheel


    mm

    130*55

    130*55

    130*55

    Wheel   material

    polyurethane

    Electrical   components

    Drive motor type

    AC series   motor

    Rated output


    kw

    1.5

    1.5

    1.5

    Hoist motor   type

    DC series   motor

    Rated output


    kw

    3

    3

    3

    Battery

    Voltage


    V

    24

    Capacity


    AH

    270

    270

    270

    Weight


    kg

    245

    245

    245


Electric Reach Truck Advantages


Comfortable and cost-effective to use in high rack warehouses

Load handling in warehouses requires numerous movements and maneuvering, often in confined spaces and at height. Elctric reach trucks are tailor-made for these conditions and ensure extremely efficient operation in high rack warehouses. WELIFTRICH electric reach truck driving and lifting are stalbe and smootly, with brand spare parts , that makes sure stable quallity and long-life using, OEM for worldwide customers. Good field of view for the operator, Small turning radius.

All models are extremely cost-effective to service thanks to low-maintenance components and long maintenance intervals. Companies can choose the right truck for their requirements from a wide product range.

electric reach truck /seated type electric reach truck/electric reach truck forklifts/electric reach truck suppliers/electric pallet reach truck/24V reach fork truck
