3300lbs 1500kg 4 Wheel Counterbalance Forklift CPD15

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • CPD15

  • WELIFTRICH

  • 1070mm fork length

  • 12 months

  • China

  • 3000kg

  • CE

  • 3000mm

  • Rubber/Solid

  • 3300lbs 1500kg 4 Wheel Counterbalance Forklift CPD15 - WELIFTRICH

  • 1500kg

Availability:

Product Description

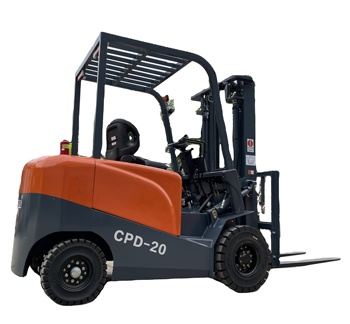

Counterbalance Forklift

The counterbalance forklift is a popular lift that features forks in the front and a weight in the back to counterbalance the weight of the load. Counterbalance forklifts have no extending arms, giving them the ability to move directly to the load.

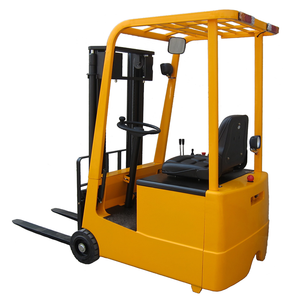

There are a few different types of counterbalance forklifts. The 3-wheel variant is ideal for situations requiring the operator to turn and maneuver in circles. The stand-up counterbalance forklift allows operators to easily hop on and off between loads.

Technical Data

Key Feature: Back-mounted weight that helps balance loads

Counterbalance Forklift Uses: Situations where circle maneuvering is necessary

Model
CPD-10F CPD-15F CPD-20F CPD-20L CPD-25F CPD-25L CPD-30F CPD-30L
Power Type
Electric Electric Electric Electric Electric Electric Electric Electric
Operation   Type
Seated Seated Seated Seated Seated Seated Seated Seated
Steering Type
Electronic power Electronic power Electronic power Electronic power Electronic power Electronic power Electronic power Electronic power
Load Capacity KG 1000 1500 2000 2000 2500 2500 3000 3000
Front   overhang/rear overhang MM 340/300 360/340 380/340 380/340 380/340 380/340 430/410
Wheel Base MM 1150 1250 1250 1250 1500 1500 1650 1650
Service   Weight(including battery) KG 1800 2700 2700 3200 3800 3800 4400 4400
Tyres(front/rear) 橡胶 500-8/15-4.5-8 650-10/500-8 650-10/500-8 650-10/500-8 650-10/500-8 650-10/500-8 28*9-15/18*7-8 28*9-15/18*7-8
Overall length(excluding   forks)/overall   width/overall height MM 1850/1020/2000 1960/1100/2000 1960/1100/2000 2300/1100/2050 2300/1100/2050 2300/1100/2050 2600/1230/2200 2600/1230/2200
Load center MM 500 500 500 500 500 500 500 500
Max. lifting   height MM 3000 3000 3000 3000 3000 3000 3000 3000
Oervall height when forks lift up to top MM 3560 3980 3980 3980 3980 3980 4100 4100
Overall   height when forks down to button MM 2000 2000 200 2050 2050 2050 2200 2200
Free lift MM 0 0 0 0 0 0 0 0
Overall   height of shelves MM 820 820 820 820 820 820 820 820
Mast angle   (forward/backward) ° 6—12 6—12 6—12 6—12 6—12 6—12 6—12 6—12
Turning   radius MM 1750 1960 1960 2000 2000 2000 2080 2080
Adjustable   fork width MM 200/970 200—970 200—970 200—970 240-970 240-970 240-970 240-970
Minimum right   Angle channel MM 1850 1940 1940 2350 2350 2350 2450 2450
Fork size(width*length*thickness) MM 100/1070/35 100*1070*35 100*1070*35 100*1070*40 120*1070*45 120*1070*45 120*1070*45 120*1070*45
Min. ground   clearance MM 80 80 80 80 80 80 80 80
Max.   travelling speed Km/h 12KM-14KM 12KM-14KM 12KM-14KM 12KM-14KM 12KM-14KM 12KM-14KM 12KM-14KM 12KM-14KM
Lifting up   speed(No load/full load) MM/S 265/220 265/220 265/220 265/220 265/220 265/220 265/220 265/220
Lifting down   speed(full load) MM/S 380 380 380 380 380 380 380 380
Gradeability(No load/full load) % 15 degree/10 degree 15 degree/10 degree 15 degree/10 degree 15 degree/10 degree 15 degree/10 degree 15 degree/10 degree 15 degree/10 degree 15 degree/10 degree
Driving   controller (lead acid/lithium)
Stepless speed change
Driving motor   (lead acid/lithium) KW 4 5. / 5 5. / 5 7.5 / 5.5 7.5 / 5.5 7.5 / 5.5 12 / 8 12 / 8
Actuator
Intelligent AC
Battery   capacity (lead acid/lithium) AH 220/220 260 / 240 260 / 240 260 / 260 260 / 280 260 / 280 260/260 500 /350
Battery   voltage (lead acid/lithium) V 60 48 / 72 48 / 72 72 / 72 72 / 72 72 / 72 72 / 72 72 /72
Battery   weight (lead acid/lithium) KG 180/180 300/300 300/300 450 / 450 450 / 480 450 / 480 260 800
Working time   of battery (lead acid/lithium) H 6-8 6-8 6-8 6-8 6-8 6-8 6-8 6-8
Motor
AC AC AC AC AC AC AC AC
Battery (lead   acid/lithium)
Brand Tianneng Brand Tianneng Brand Tianneng Brand Tianneng Brand Tianneng Brand Tianneng Brand Tianneng Brand Tianneng
Tyres
Forward / Backward Forward / Backward Forward / Backward Forward / Backward Forward / Backward Forward / Backward Forward / Backward Forward / Backward
Voltage of   intelligent charger (lead acid/lithium) V(AC)/HZ 220V/50HZ-60HZ 220V/50HZ-60HZ 220V/50HZ-60HZ 220V/50HZ-60HZ 220V/50HZ-60HZ 220V/50HZ-60HZ 380V/50HZ-60HZ 380V/50HZ-60HZ
Charging time   (lead acid/lithium) H Lead acid 6—7 / lithium   battery 2-8hours
Oil pump
Hydraulic
Noise level   DIN12053 dB(A) <70 <70 <70 <70 <70 <70 <70 <70
