2.5ton 3.0ton ride on electric load stacker electric powered stacker narrow electric forklift stacker

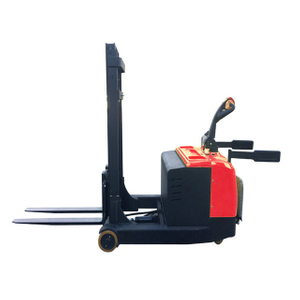

Rider Electric Stacker ES-25N/30N
1) Capacity: 2500kg/3000kg, original Curtis controller.
2) 24V/240Ah brand lead-acid battery, walking time 7 hours, charging time is 8-10 hours.

Model:
ES-25N/30N
Brand:
WELIFTRICH
Code:
8427109000
Fork size:
550*1150mm/685*1200mm
Warranty:
1 year
Place of Origin:
China
Certification:
CE/IS09001
Lifting Height:
3.0m
Product Name:
Electric Stacker
Load Capacity:
2500kg 3000kg

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

DESCRIPTION

Fully Electric Pallet Stacker ES-25N/30N

Capacity ：2.5/3.0Ton，lifting height：3.0m, free lifting can be choose.
Simple structure，easy to maintain and repair.

Horizontal driving wheel,electromagnetic brake.

CURTIS controller，MAHLER hydraulic motor. Quality electrical parts，side shift is optional.

240/280Ah lead-acid quality battery，long life without add puring water.

Reverse Button/ Emergency Button/Battery Indicator/Automatic Charger.

Strong structure with strength forks，no bending/long life/strong chassis bearing heavy duty.

Emergecy stop/Hour meter/Battery level indicator.

QQ图片20180807132422

SPECFICATION

Model				ES-25N/ES-30N
Performance	Load capacity		kg	2500/3000
	Load center	Q	mm	500
	Maximum lifting height	H3	mm	3000
	Travel speed (without load)		km/h	6
	Travel speed (with load)		km/h	5
	Lifting speed (without load)		mm/h	140
	Lifting speed (with load)		mm/h	120
	Lowered speed (without load)		mm/h	150
	Lowered speed (with load)		mm/h	155
	Gradeability (without load )		%	7
	Gradeability (with load )		%	5
	Weight (without battery)		kg	945
Dimensions	Overall length	L	mm	2150
	Overall width	B	mm	850
	Mast lowered height	H1	mm	1955
	Max. work height	H4	mm	3410
	Wheelbase	Y	mm	1460
	Fork length		mm	1150
	Fork width	B1	mm	680
	Fork width	B2	mm	300
	Fork thickness		mm	65
	Fork lowered height	S	mm	90
	Min frounf height		mm	15
	Minimum turning radius (with platform)	Wa1	mm	2070
	Minimum turning radius (without platform)	Wa	mm	1670
	Min intersecting aisle width	Asts	mm	2370
Wheels	Front wheel		mm	85*70
	Drive wheel		mm	230*75
	Caster wheel		mm	130*55
	Wheel type	polyurethane
Electrical components	Drive motor	AC
	Rated output		kw	1.5
	Lift motor	DC
	Rated output		kw	3
battery	Voltage		V	24
	Capacity		AH	240
	Weight		kg	220

Productivity

AC Electrical System

Alternating current design optimizes productivity and energy efficiency, allowing two shifts with one battery charge in many applications.

Display Panel

Easy-to-read display includes information on service icons, directional indicators and performance modes.

Selective Performance Modes

Five-level pre-programmed performance mode selector lets you adapt to various applications.

Durability

Sealed Components

Electric motors are protected to IP54 standards. Electro-magnetic brakes and short cables help protect components from dust and moisture, helping to minimize stacker downtime and extend service intervals.

Serviceability

Performance Customization

Exclusive and comprehensive servicing software allows the factory-trained technician the ability to perfectly match performance parameters to your application.

Awareness

Curve Control

Curve Control automatically reduces speed while turning corners, helping to ensure control over loads.

Visibility

Optimum visibility in all directions due to mast, overhead guard and counterweight design.
