Product Description

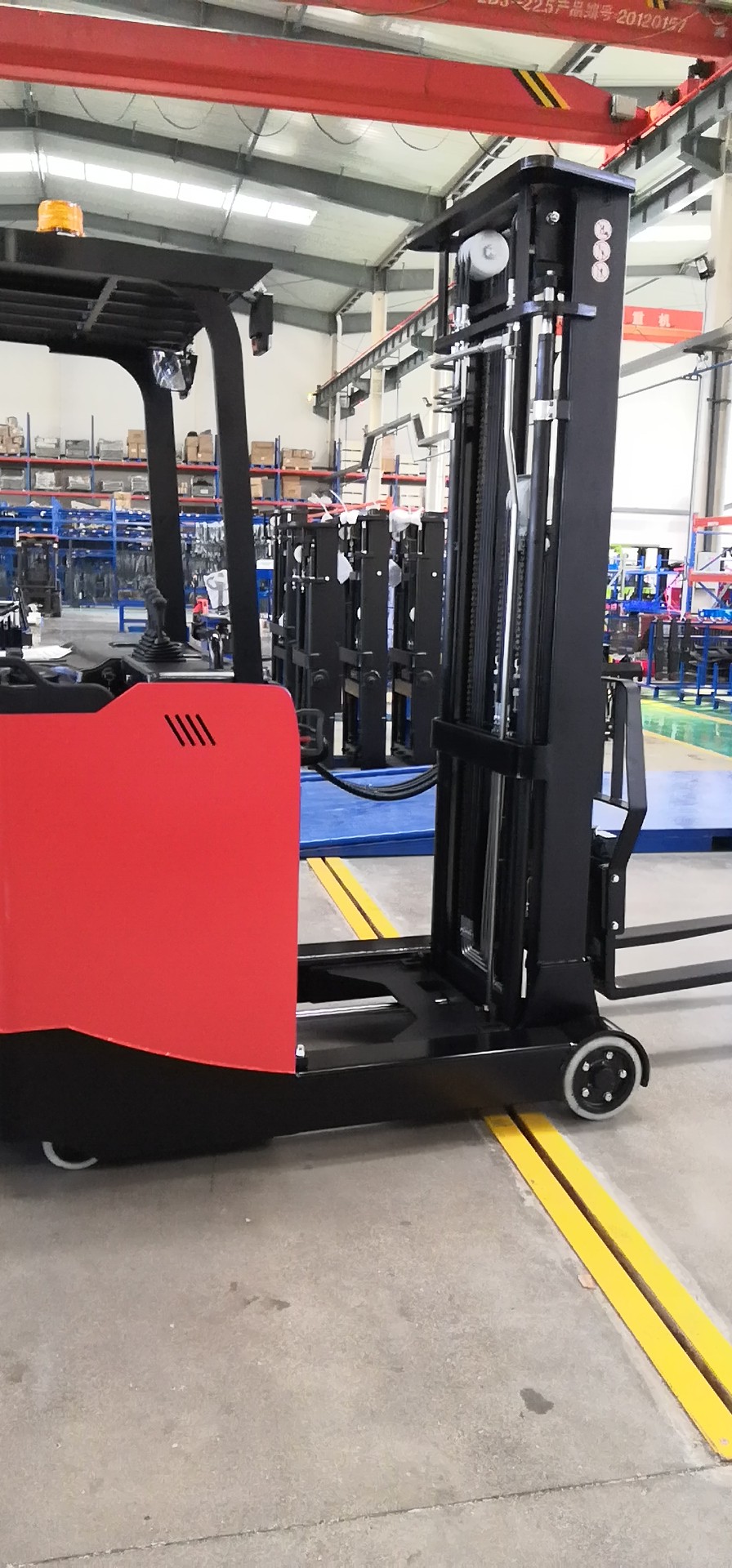

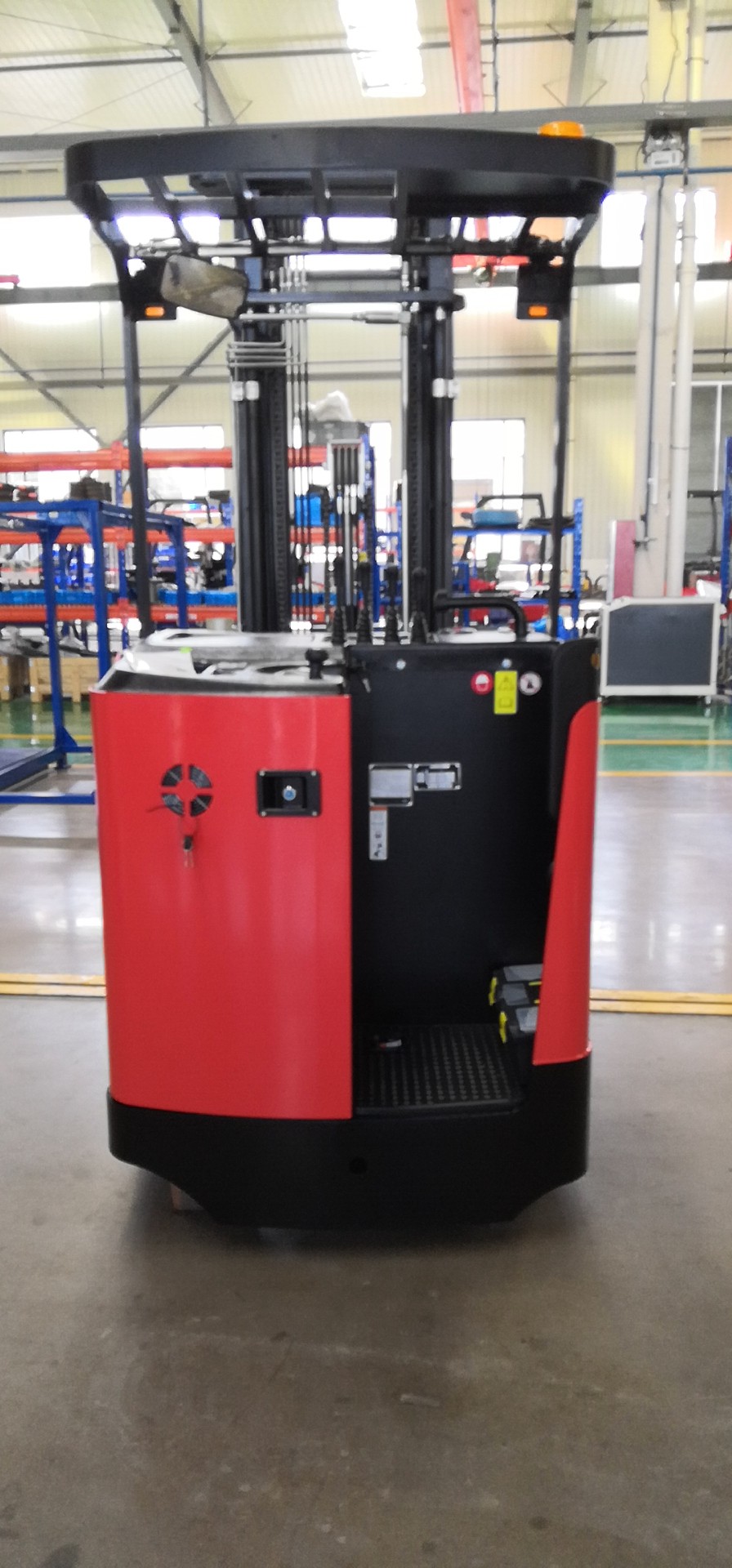

4000 LB Electric Stand Up Reach Truck CQD-15 Performance


The 4000 LB Electric Stand Up Reach Truck CQD-15 is engineered to fit your narrow aisle application with multiple configurations and smaller battery compartment options to right-size your operation and reduce energy costs. Smaller battery compartments may allow for fewer aisles and more pallet positions than competing models.

Electric Stand Up Reach Truck Technical Data



Electric   Standing Reach Truck CQD15S







Capacity: 1500kg.










Lifting height is 6.0m   with 3 stage mast.







For product quality   and information,please contact sales service centre authorized by Welift   Machinery Co.,Ltd.



WELIFT MACHINERY CO.,   LTD.


certificate: CE



Specifications








Distinguishing   mark








1.1

Manufacturer



WELIFTRICH

1.2

Model



CQD15S

1.3

Drive unit



Battery

1.4

Operator Type



Standing

1.5

Rated capacity

Q

t

1.5

1.6

Load center distance

c

mm

600

1.7

Wheelbase

y

mm

1504

Weight









2.1

Service weight (include battery)


kg

2630

2.2

Axle loading,fork advanced, unladen driving   side/loading side


kg

991/1230

2.3

Axle loading,fork retracted, unladen driving   side/loading side


kg

1389/853

2.4

Axle loading,fork advanced, laden driving   side/loading side


kg

260/3444

2.5

Axle loading,fork retracted, laden driving   side/loading side


kg

1283/2416

Types,Chassis









3.1

Tyre type driving wheels/loading wheels



PU

3.2

Tyre size,driving wheels (diameter x width)


mm

260x105

3.3

Tyre size,loading wheels (diameter x width)


mm

254x114

3.4

Tyre size,caster wheels (diameter x width)


mm

178x73

3.5

Wheels,number driving, caster/loading (x=drive   wheels)



1,  2,  2

3.6

Track width,front,driving wheels

b10

mm

520

3.7

Track width,rear,loading wheels

b11

mm

974

Dimensions









4.1

Titl of mast/ fork carriage forward/backward

α/β

°

2/4

4.2

Height,mast lowered

h1

mm

2610

4.3

Free lift (load backrest)

h2

mm

1575

4.4

Lift height

h3

mm

6000

4.5

Height, mast extended

h4

mm

7035

4.6

Height of overhead guard (cabin)

h6

mm

2235

4.7

Seat height/standing height

h7

mm

335

4.8

Height of wheel arms

h8

mm

280

4.9

Overall length (minimum)

l1

mm

2392

4.1

Length to face of forks

l2

mm

1322

4.12

Overall width

b1/b2

mm

1078/1090

4.13

Fork dimensions

s/e/l

mm

40x100x1070

4.14

Fork carriage class/type A,B


mm

A

4.15

Fork carriage width

b3

mm

830

4.16

Outside width of the forks

b5

mm

200-620

4.17

Distance between wheel arms/loading surfaces

b4

mm

750

4.18

Reach distance

l4

mm

630

4.19

Ground clearance,laden,below mast

m1

mm

70

4.20

Ground clearance,center of wheelbase

m2

mm

70

4.21

Aisle width for pallets 1000x1200 crossways

Ast

mm

2783

4.22

Aisle width for pallets 800x1200 lengthways

Ast

mm

2820

4.23

Turning radius




Wa

mm

1765

4.24

Length across wheel arms (exclusive fork)

l7

mm

1912

Performance   data









5.1

Travel speed, laden/ unladen


km/h

8.5/9

5.2

Lifting speed, laden/ unladen


m/s

0.26/0.45

5.3

Lowering speed, laden/ unladen


m/s

0.45/0.43

5.4

Reaching speed, laden/ unladen


m/s

0.083

5.5

Max.gradeability, laden/ unladen


%

8/10

5.6

Service brake type



Electromagnetic


Park brake type



Electromagnetic











6.1

Drive motor rating S2 60 min


KW

4

6.2

Lift motor rating at S3 15%


KW

8.2

6.3

The maximum allowed size battery


mm

1030x353x784

6.4

Battery voltage/nominal capacity K5


V/Ah

48V/420Ah

6.5

Battery weight


Kg

660











7.1

Type of drive unit



AC

7.2

Steering type



Electroniic

7.3

Sound pressure level at the driver's ear


dB(A)

75

The   diagram shown may contain non-standard configurations.





Electric Stand Up Reach Truck Applications

Load handling in warehouses requires numerous movements and maneuvering, often in confined spaces and at height. For example, they automatically adjust the lift and travel speed, or precisely compensate for mast oscillation in certain models.

electric reach truck /seated type electric reach truck/electric reach truck forklifts/electric reach truck suppliers/electric pallet reach truck/48V reach fork truck/4000 lb Electric Stand Up Reach Truck
