7700lbs 3500kg HIgh Capacity Electric Forklift CPD35T 7700lbs 3500kg HIgh Capacity Electric Forklift CPD35T
7700lbs 3500kg HIgh Capacity Electric Forklift CPD35T 7700lbs 3500kg HIgh Capacity Electric Forklift CPD35T

7700lbs 3500kg HIgh Capacity Electric Forklift CPD35T

Share to:
  • CPD30T
  • WELIFTRICH
  • 1070mm fork length
  • 12 months
  • China
  • 3000kg
  • CE
  • 3000mm
  • Rubber/Solid
  • 7700lbs 3500kg HIgh Capacity Electric Forklift CPD35T - WELIFTRICH
  • 3000kg
Availability:
Quantity:
Inquire Add to Basket

Product Description

Instruction

Electric forklifts run on a battery that serves as both the counterweight to stabilize the equipment while in use as well as the power source. In addition, the battery aids to protect the environment with quiet, lower-emission operation and rechargeable capabilities.

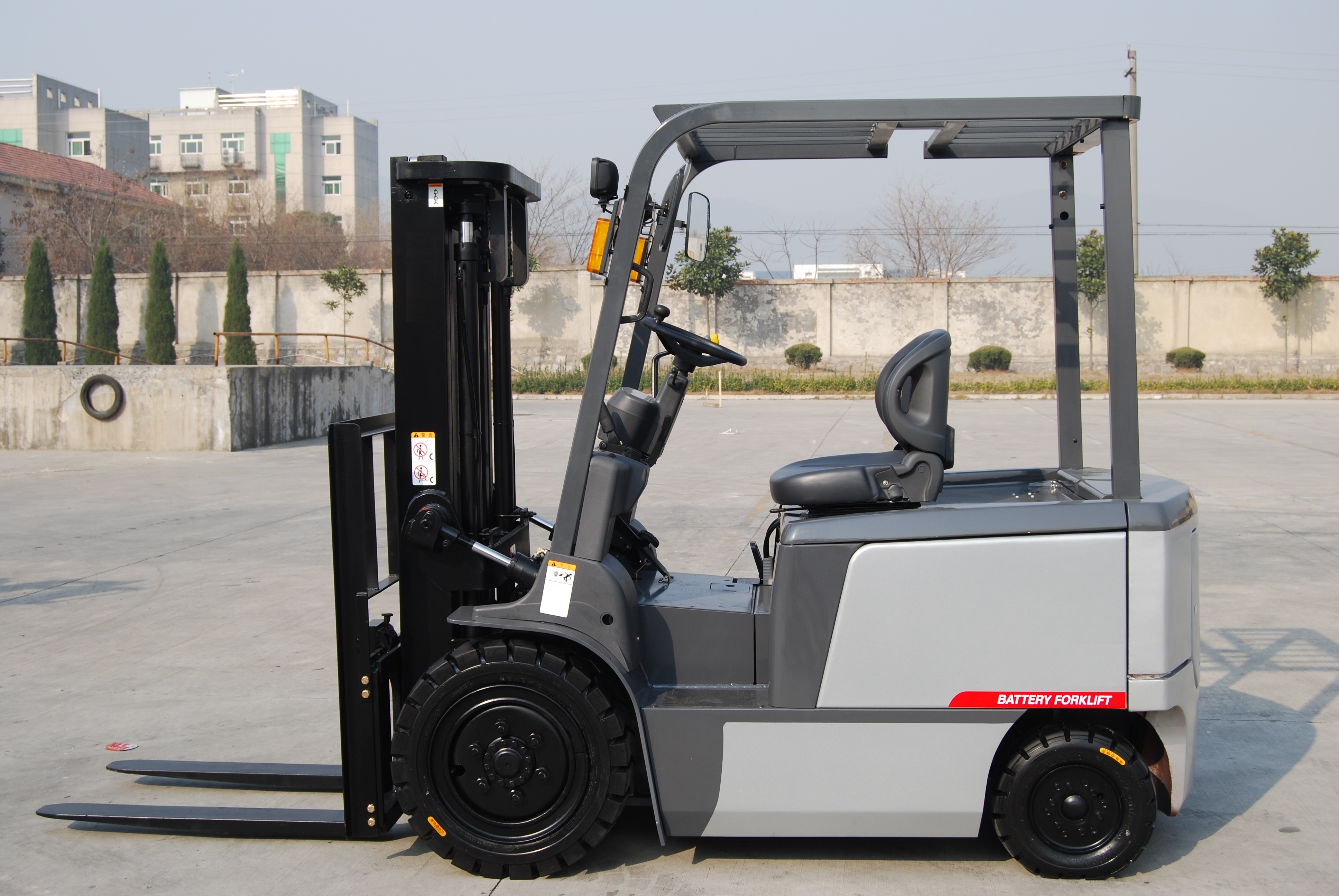

High Capacity Electric Forklift

The WELIFTRICH High Capacity Electric Forklift gives you the versatility to lift massive loads without the need of traditional IC engines.

EQUIPMENT DETAILS

15,00 – 5,000 kg capacity

  • AC drive and pump motors

  • 48/72/80-volt configurations

  • drive motor

  • Heavy duty planetary drive axle

  • Big loaded center


High-Capacity Electric Forklift Mast SPECS

Mast model Load centre 500mm Max.lifting height Mast height Tilt range
CPD15 CPD20 CPD25 CPD30 CPD35 CPD40 CPD15-CPD25 CPD30-CPD35 CPD40 CPD15-CPD25 CPD30-CPD40 forward/   backward
kg kg kg kg kg kg mm fork lowered (mm) fork raise with backrest (mm) degree
VM250 1500 2000 2500 3000 3500 4000 2500 1745 1825 1900 3530 3750 6-12
VM270 1500 2000 2500 3000 3500 4000 2700 1845 1925 2000 3730 3950 6-12
VM300 1500 2000 2500 3000 3500 4000 3000 1995 2075 2150 4030 4250 6-12
VM330 1500 2000 2500 3000 3500 4000 3300 2145 2225 2300 4330 4550 6-12
VM350 1500 2000 2500 3000 3500 4000 3500 2245 2325 2400 4530 4750 6-12
VM400 1500 2000 2500 3000 3500 4000 4000 2545 2625 2700 5030 5250 6-6
VM450 1400 1800 2000 2600 *3000 3000 *3500 3400 *4000 4500 2795 2875 2950 5530 5750 6-6 *6-12
VM500 1000 1300 1500 2400   *2850 2800   *3300 3200   *3700 5000 3045 3125 3200 6030 6250 6-6 *6-6

High Capacity Electric Forklift Video
