| Certificate |
| CE |
| Characteristics |
|
|

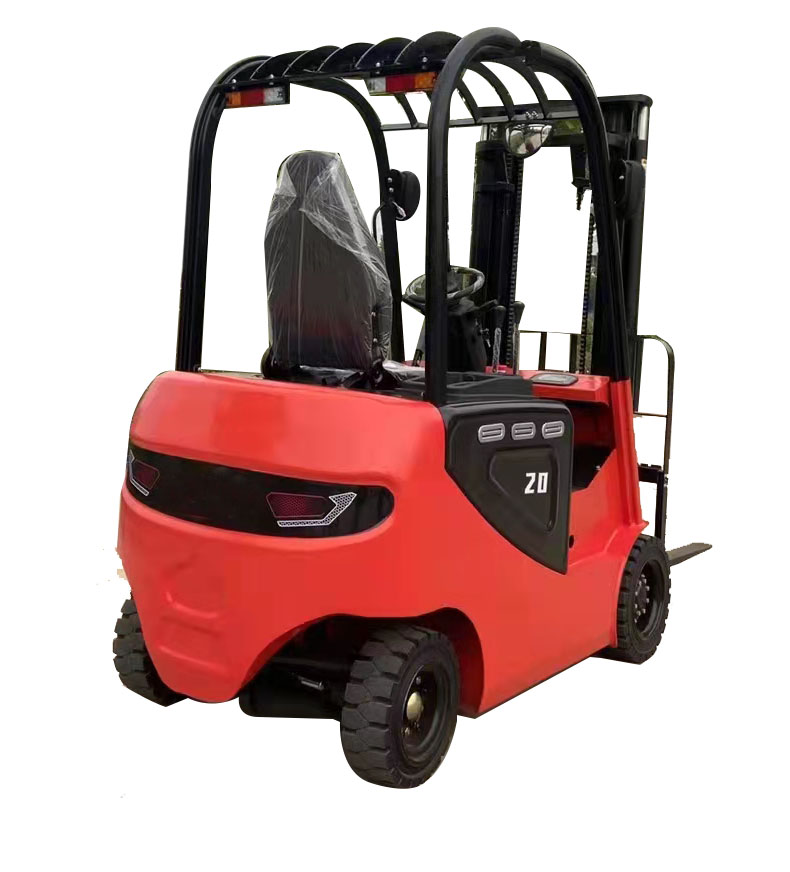

| Model |
| CPD20D |
| Driving mode |
| seated |
| Rated capacity | kg | 2000 |
| Load center | mm | 500 |
| Power mode |
| Lead-acid battery |
| Wheelbase | mm | 1550 |
| Performance |
|
|
| Traval speed,laden/unladen | km/h | 7.5/8.5 |
| Lifting speed,laden/unladen | mm/s | 180/200 |
| Lowering speed,laden/unladen | mm/s | 550 |
| Max. Gradeability | % | 15/20 |
| Weight |
|
|
| Service weight with battery | kg | 2550 |
| Battery voltage/capacity | V/Ah | 60V/210Ah |
| Battery weight | kg | 300 |
| Electrical configuration |
|
|
| Driving motor power | KW | 5 |
| Lifting motor power | KW | 4.5 |
| Driving motor controlling mode |
| MOSFET/AC |
| Lifting motor controlling mode |
| MOSFET/AC |
| Service brake/parking brake |
| Hydraulic/Mechanial |
| Tyre |
|
|
| Tyre type |
| Solid tire |
| Wheels number(Front/Rear) |
| 2/2 |
| Front track | mm | 945 |
| Rear track | mm | 880 |
| Tyre(front) |
| 18*7-10 |
| Tyre(rear) |
| 15*4 1/2-8 |
| Size |
|
|
| Front overhang | mm | 325 |
| Tilt of the mast, front/rear | ° | 5/10 |
| Lowered height of mast | mm | 2030 |
| Overall max.lift height | mm | 3000 |
| Mast extended height | mm | 4055 |
| Overhead guard height | mm | 2110 |
| Lateral Fork Adjustment(Outside of fork) | mm | 1040/100 |
| Body length（fork excluded） | mm | 2230 |
| Body width | mm | 1096 |
| Turning radius | mm | 2280 |
| Ground clearance under mast | mm | 88 |
