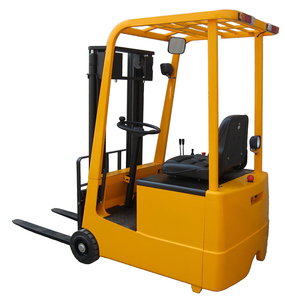

5500lbs 3000kg warehouse sit down forklift CPD30F

Model: CPD30F
Brand: WELIFTRICH
Fork size: 1070mm fork length
Warranty: 12 months
Place of Origin: China
Weight : 4000kg
Certification: CE
Lifting Height: 3000mm
Wheel Type: Rubber/Solid
Product Name: 5500lbs 3000kg warehouse sit down forklift CPD30F - WELIFTRICH
Load Capacity: 3000kg

Availability:

Quantity:


Inquire Add to Basket

Product Description

Product Description

Warehouse Forklift

The Warehouse Forklift is the most recognizable type of lift truck. It resembles a golf cart with twin forks extending from the front. You’ll most often use this forklift in a facility with many items in inventory, as it’s great for loading and unloading pallets and transporting items to and from delivery vehicles.

AC motors provide new levels of performance, efficiency, and reliability to maximize your productivity and return on investment.

Technical Data

3-wheel and 4-wheel Warehouse electric forkliftspecifications:

Key Feature: Wahouse Forklift Trucks have a loading capacity of 1-5 tons

Uses: Best for raising and transporting items over short distances

Manufacturer	--	--	WELIFTRICH
Model	--	--	CPD05F	CPD10F	CPD15F	CPD20F	CPD25F	CPD30F
Load capacity	--	kg	750	1000	1500	2000	2500	3000
Load center	--	mm	500	500	500	500	500	500
Power unit	Battery / Diesel / Gasoline	--	Battery	Battery	Battery	Battery	Battery	Battery
Operator type	--	--	Driver / seat	Driver / seat	Driver / seat	Driver / seat	Driver / seat	Driver / seat
Tire type	Front / Rear	--	Solid	Solid	Solid	Solid	Solid	Solid
Wheel (X=driven)	Number Front / Rear	--	2 X 2	2 X 2	2 X 2	2 X 2	2 X 2	2 X 2
Tire model	front		15 X4.5-8	16 X6-8	650-10	650-10	650-10	23*10-12
Tire model	Rear		3.20-8	15 X4.5-8	500-8	500-8	18*7-8	200/50-10
Max. lifting height	--	mm	2500	3000	3000	3000	3000	3000
Free lift	--	mm	110	120	160	160	160	150
Fork size	LWT	mm	92010030	107010030	122010035	122010040	122012545	122012545
Tilt range	Mast forward / backward	deg	8 / 8	8 / 8	8 / 8	8 / 8	8 / 8	8 / 8
Overall length(without fork)	--	mm	1530	1800	2200	2250	2320	2570
Total width	--	mm	880	1040	1150	1160	1160	1280
Mast height (fork lowering)	--	mm	1900	1970	2040	2040	2040	2080
Overall height fork raised	With backrest	mm	3650	4010	4010	4010	4010	4140
Height to head guard	--	mm	1870	2000	2050	2050	2100	2120
Turning raduis(outside)	--	mm	1550	1850	2180	2230	2230	2380
Speed	Max travelling Full / No load	km/h	10 / 12	10 / 12	10 / 11	9/ 11	10 / 11	12 / 13
	Lifting Full / No load	mm/s	150/220	150/220	220/320	220/320	220/320	200/320
	Lowering Full / No load	mm/s	350 / 320	350 / 320	350 / 320	350 / 320	350 / 320	420 /380
Gradeability	Full load	%	15	15	18	18	18	18
service weight	--	kg	1600	1900	2500	2900	3100	4700
Wheelbase	--	mm	950	1200	1350	1450	1540	1720
Tread	Front / Rear	mm	900/900	1020/1040	1050/935	1050/935	990/950	1050/1010
Ground clearence	At lowest point (mast)	mm	80	90	120	120	120	100
Brake	Service brake	--	Hydraulic-foot pedal	Hydraulic-foot pedal	Hydraulic-foot pedal	Hydraulic-foot pedal	Hydraulic-foot pedal	Hydraulic-foot pedal
Brake	Parking brake	--	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Battery	Voltage / Capacity	v-ah/5hr	48V/150Ah	60V/150Ah	60V/230Ah	60V/260Ah	60V/260Ah	72V/560Ah
battery weight		kg	160	200	350	350	420	970
Electric motor	Driving motor	kw	3	3	5.5	5.5	7.5	11
Electric motor	Hydraulic motor	kw	2.5	2.5	4.5	4.5	6	12
Control type	Driving		AC motor	AC motor	AC motor	AC motor	AC motor	AC motor
Control type	Lifting	--	DC motor	DC motor	DC motor	DC motor	DC motor	AC motor
